NEW HIGH-SPEED DOWNLOADER!

The World's Fastest Downloader For The Motorola HC11 !


Download your compiled programs into any* HC11 at INCREDIBLE SPEEDS!
*Tested on the E1, E2, E9, E20, A0, A1, and A8


HSSDL11 SUMMARY:
The 68HC11 Multi-Speed Downloader v2 for Windows 95 & Up, is an ultra-fast downloader for the MotorolaTMMC68HC11 microcontroller family. It is a fully operational 32 bit program.

The HSSDL11 (High-Speed-Serial-Downloader 11) is capable of downloading
programs into a microcontroller's RAM at speeds up to 115200 Baud.
It greatly speeds up the whole programming/debugging process and reduces
turnaround times to the minimum possible.

NOTE: The HSSDL11 also loads programs into internal EEPROM faster than any other downloader, but, due to technological limitations inherent to EEPROM programming, speeds are 1200 for bootload and 9600 for download of EEPROM (if you load the same data twice it's even faster... 20% or so)

No extra external hardware is ever needed to achieve these speed boosts.

Just run the HSSDL11 program, select your code file, connect the RS232 link to your embedded 68HC11 application, and download the code into the 68HC11.

Hint information is provided throughout the program, to help the user know what is going on at
each step of the downloading process. By allowing multiple instances to be run, the user can download multiple program segments with minimal turnaround times. User preferences are automatically saved.

Requirement: Windows 95 or better.

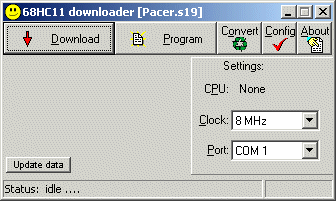

Just a few easy steps....


Just Click on the download button to begin the download.


Click on whether to Download to Ram or to Download to the EEPROM (Depending on your HC11 chip)



This is a RAM download so the speed is 115,200 bps. WOW!


A program downloaded in an AMAZINGLY FAST 7.5 seconds!



FEATURES of the HSDLL11:
- Works with 8/10 MHz clock frequencies.
- Boots at 1200/9600 Baud, depending on the microcontroller's clock frequency.
- Downloads at 115200 Baud for 8/10MHz clock frequency (RAM only).
- Downloads to RAM and EEPROM
- Boot/download progress shown in progress bar.
- Booter/program size shown in bytes.
- Works for different 68HC11 families (A, E).
- Microcontroller family auto-detection during booting.

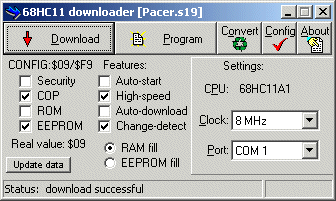

- CONFIG register utility allows you to choose SECURITY, COP, ROM and
EEPROM settings.
- "Auto-start" feature lets you automatically start the program without
pressing RESET.
- "Auto-download" feature allows automatic download everytime the RESET
button is pressed.
- "High-speed" setting lets you choose between "normal" and ultra-fast
download.
- Hint help on each control give basic information.
- Preferences are automatically retrieved at launch time and saved at
application close time.
- Programs to download are selected by means of a dialog box.
- When downloading, if the program file was changed, downloader data is
updated automatically.
- Auto-detection of available communications ports.
- Multiple instances may be opened at the same time, but only one at a time
may be downloading.
- Build-in S19 file optimizer reduces download time to 75% of the normally
necessary.
- Log file keeps track of any internal software errors.
- Converter utility for converting "S19" files into "BIN" (raw serial data)
